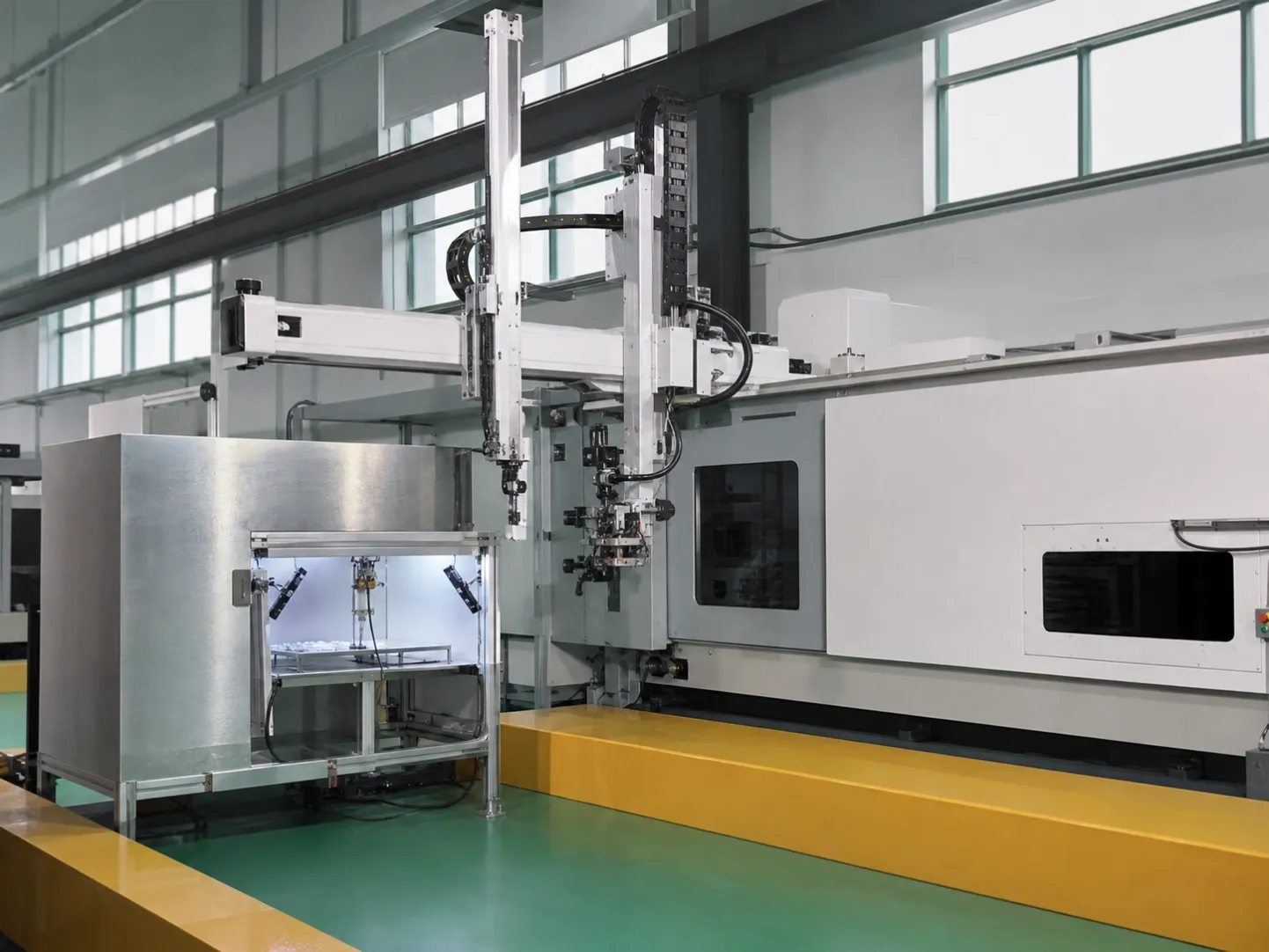

High-Speed Out-of-Mold Inspection System
An online vision inspection system that checks injection-molded parts after robotic removal for foreign material, dimensional conditions and other visible defects.
Specifications
- Inspection Speed
- 10 products per second per camera
- Cycle Impact
- 0 seconds stated impact on molding cycle
- Compatible Injection Molding Machines
- Any brand
- Compatible Take-Out Robots
- Servo robots and pneumatic robots
- Camera Configuration
- Multiple cameras
- Camera Resolution Options
- 2 MP / 3 MP / 5 MP
- Operation
- Quick setup; no specialist operation required
High-Speed Out-of-Mold Inspection System
Product Overview
This online inspection system checks injection-molded parts after they are removed from the mold by a take-out robot. It is designed to inspect the complete part outside the mold before downstream handling.
Inspection Tasks
The source lists full-part inspection, foreign-material detection and dimensional measurement. Camera viewpoints and lighting should be configured around the part geometry and the surfaces that must be checked.
Speed and Integration
The stated source configuration inspects up to 10 products per second per camera and is described as having no impact on the molding cycle. It supports multiple cameras and selectable 2 MP, 3 MP or 5 MP camera resolution.
Machine Compatibility
The system is listed for injection molding machines of any brand and for both servo and pneumatic take-out robots. Final mechanical layout, reject handling and communication depend on the production line.
Request a Quote
Share the part drawings, molding cycle, take-out robot type, target defects, required viewpoints and available installation space to define the system configuration.
