IMX-790 Mold Monitoring System
Vision-based mold protection system for monitoring critical mold conditions before and after part ejection to help prevent mold damage and unplanned downtime.
Specifications
- Model
- IMX-790
- Camera Model
- V1 Pro
- Display
- 14-inch touchscreen
- Display Resolution
- 1920 x 1080
- Supported Cameras
- 4
- Camera Resolution
- Up to 8 MP (3840 x 2140)
- Lens
- 10x optical zoom (5-50 mm)
- Lighting
- Integrated infrared and white light
- Image Modes
- Monochrome / color
- Power Supply
- DC 24 V
- Certifications Shown in Source
- CE, FCC
IMX-790 Mold Monitoring System
Product Overview
The IMX-790 is designed to monitor mold conditions during injection-molding production. It captures mold images at defined points in the cycle and compares the observed state with an accepted condition before allowing the process to continue.
Inspection Functions
Source-listed checks include incomplete part ejection, cavity residue, abnormal ejector-pin or slide return, missing or misplaced inserts. An abnormal result can be connected to an alarm or machine-stop signal.
Imaging and Operation

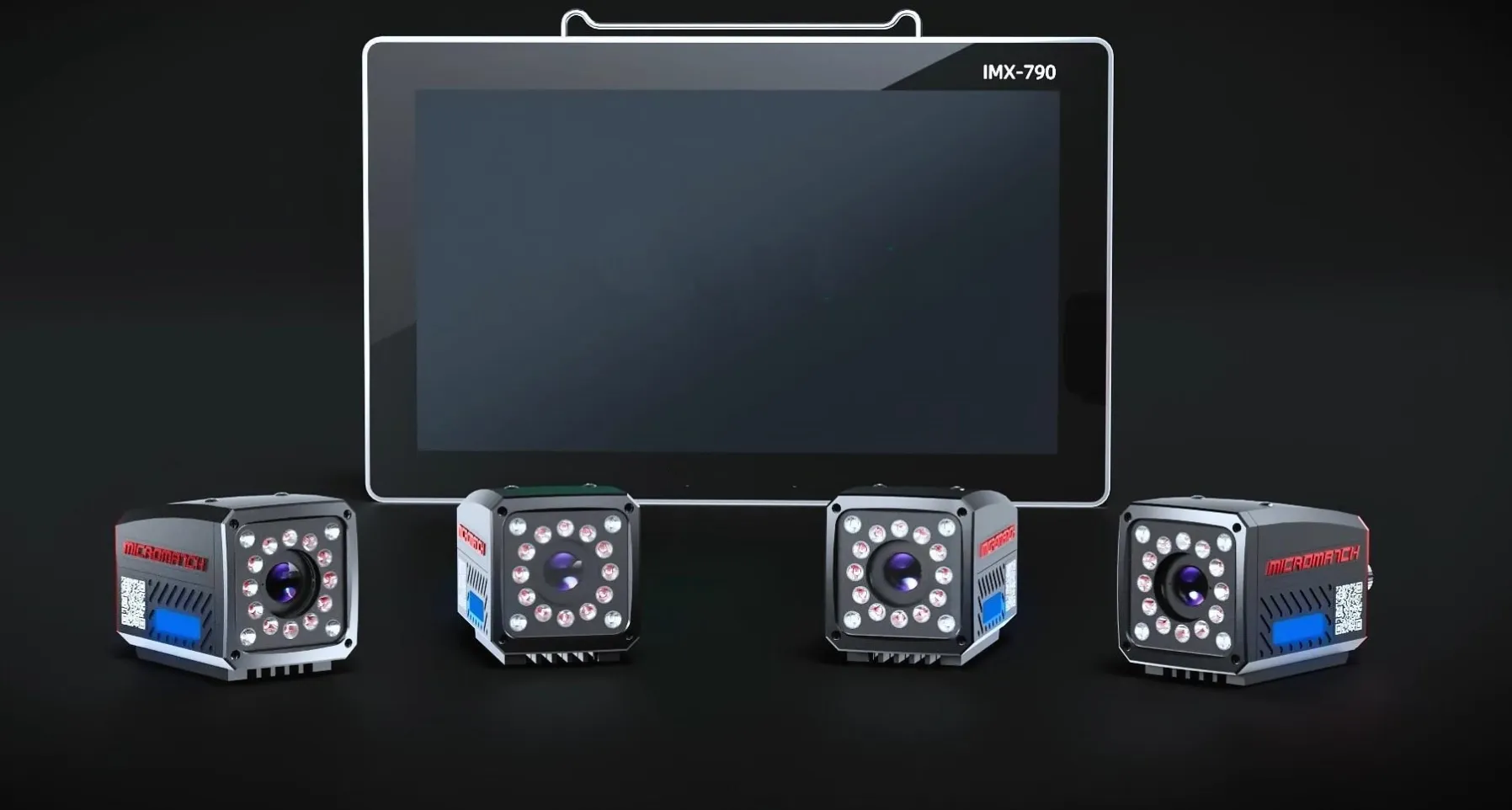

The source configuration combines a 14-inch touchscreen controller with support for up to four V1 Pro cameras. The camera system supports up to 8 MP imaging, integrated infrared and white lighting, monochrome or color operation, automatic focus and optical zoom.
Applications
Typical source applications include precision injection molding and metal die casting for connectors, mobile-device housings, automotive components and gears.
Request a Quote
Share the mold size, molding-machine interface, target abnormalities and required camera viewpoints to define a suitable IMX-790 configuration.
