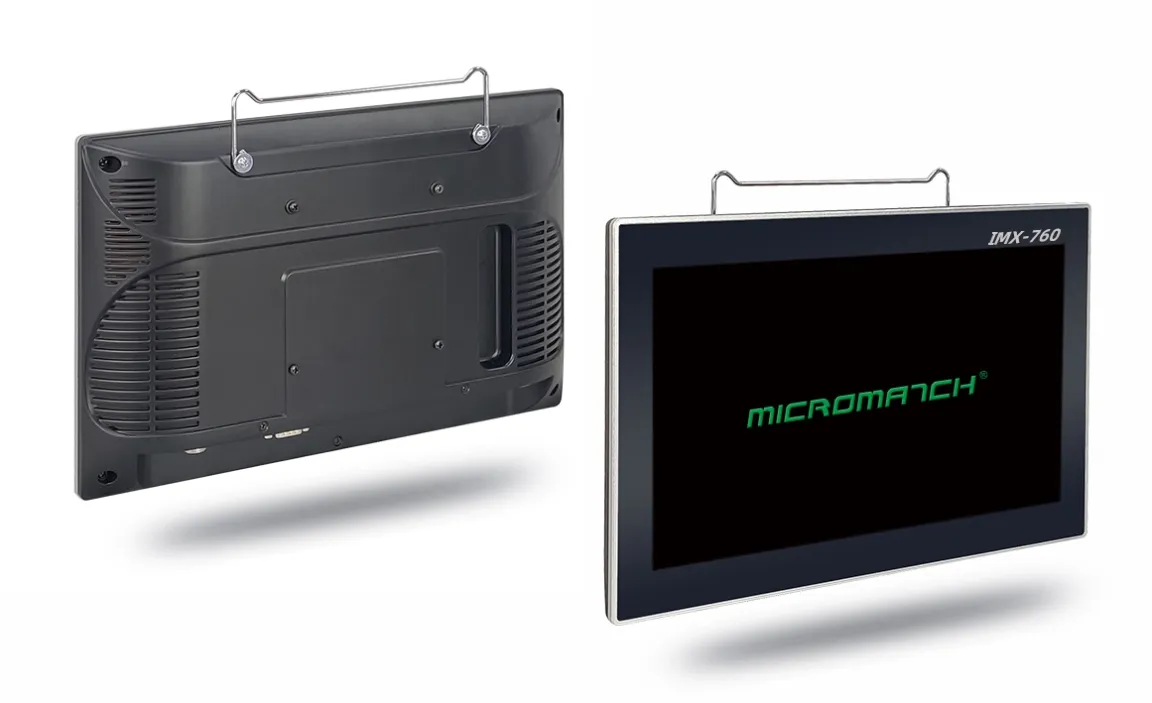

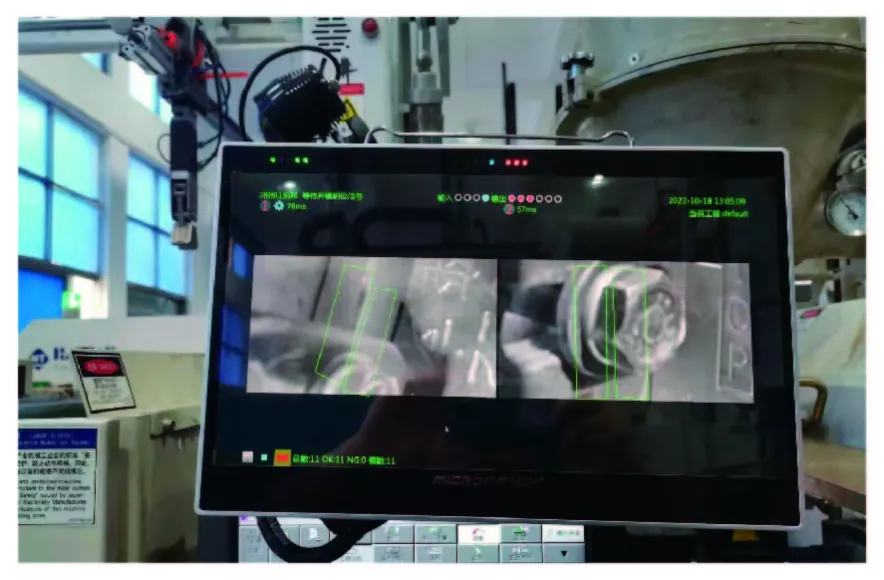

IMX-760 Mold Monitoring systems
Machine-vision mold protection system for injection molding, with two-stage inspection before ejection and before mold closing to detect sticking, residue, foreign objects, part defects, and ejector or slider position errors.
Specifications
- Display
- 14”
- Pixels
- 2.0Mega
- Color
- Monochrome
- Lights
- IR light
- Power
- DC 24V
What it detects
The IMX-760 analyzes mold-state images during injection molding to detect incomplete ejection, stuck parts, cavity residue, foreign objects, short shots, incorrect or missing inserts, and ejector or slider return errors.
Two-stage mold protection

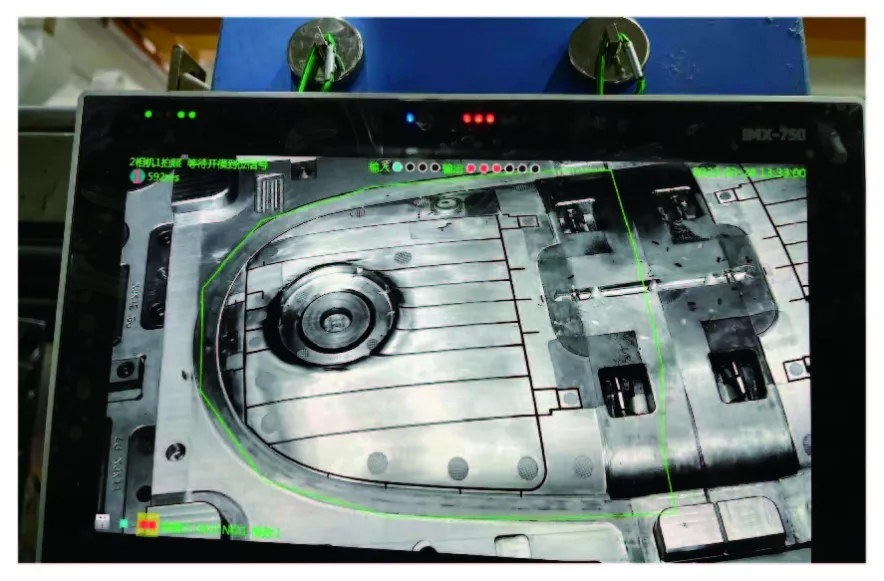

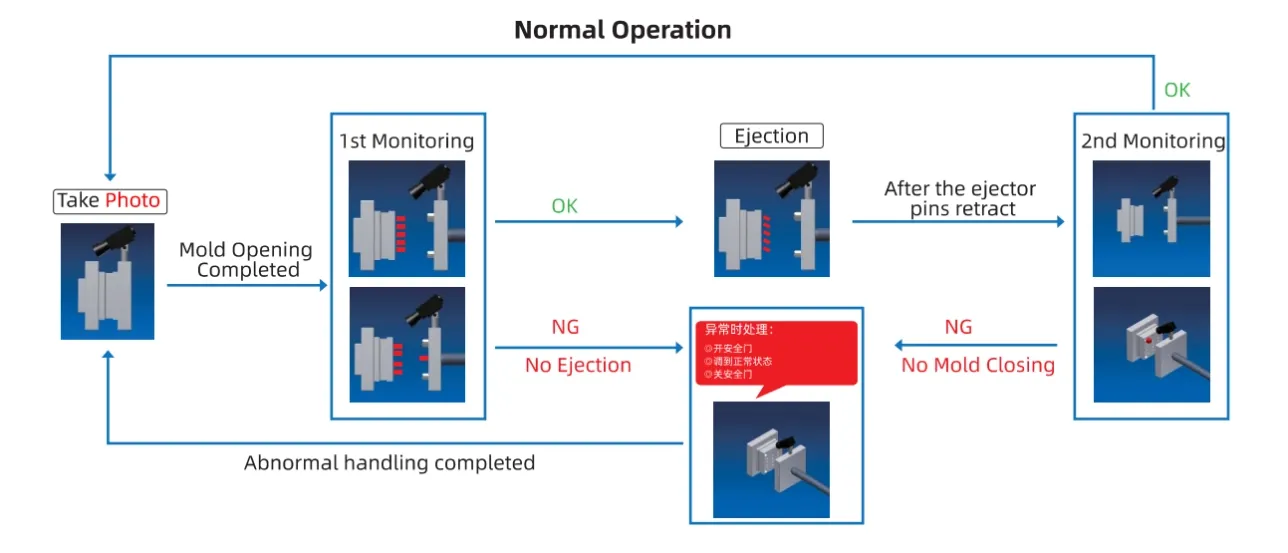

The first inspection occurs after mold opening and before ejection to check part quality and sticking on the cavity. The second inspection occurs after ejection and before mold closing to confirm the cavity is clear and the ejectors and sliders are in position. When an abnormality is detected, the system can prevent ejection or mold closing and trigger an alarm.
Applications
Suitable for electronic connectors, automotive components, printer parts, medical parts, die-cast parts, LED components, laptop housings, mobile-phone parts, and other precision plastic products.
System Working Principle
- Industrial camera captures images during each molding cycle
- Vision algorithm analyzes part presence and shape
- Abnormal conditions trigger alarm signals
- Output signals are sent to the injection molding machine or PLC
- Mold closing is stopped to prevent damage
-
