Vision Inspection Machines
Vision Inspection
The AOI Rotary Vision Inspection Machine is designed for high-speed, automated inspection of small and precision parts. With a rotary table structure and multi-camera vision system, the machine enables continuous inspection, ensuring stable and reliable defect detection during mass production. This solution is widely used in plastic injection molding, electronics components, connectors, and precision parts manufacturing.
Specifications
- Product Range
- Electornic, Automotive, Medical etc indusctry.
- Inspection
- 1 side-- 360 degree
- Inspect Contents
- Burr, flash, material shortage,size...all kind of defects
- Feeding
- Vibration
- Speed
- 5s/pc
Problems We Solve
Manufacturers often face challenges such as:
- Manual inspection efficiency is too low
- High labor cost and unstable inspection quality
- Defects missed at high production speeds
- Inconsistent quality during mass production
- Difficulty inspecting multiple sides of small parts
The rotary AOI system provides consistent, repeatable, and high-speed inspection, replacing manual checks.
Detectable Defects
The system can inspect and detect:
- Surface defects (scratch, stain, contamination)
- Deformation
- Short shot
- Flash
- Missing features
- Foreign objects
- Dimensional abnormalities (optional)
Only OK products proceed to the next process.
System Configuration
- Rotary table feeding and positioning system
- Industrial cameras (single or multiple cameras)
- Controlled lighting system
- Vision processing unit
- Sorting mechanism (OK / NG separation)
- Industrial control interface (PLC / I/O)
Working Principle
- Products are loaded onto the rotary table
- Each station performs image capture
- Vision algorithms analyze product features
- NG parts are identified and recorded
- Sorting system separates OK and NG products
The rotary design allows continuous operation without stopping the production line.
Key Advantages
✔ High-Speed Inspection
Rotary table design enables continuous, high-throughput inspection.
✔ Stable Performance
Designed for 24/7 industrial operation, suitable for mass production.
✔ Flexible Configuration
Camera quantity, lighting, and inspection logic can be customized.
✔ Cost-Effective
Optimized for Southeast Asia, India, and emerging markets, delivering reliable performance at a reasonable cost.
9️⃣ Typical Applications

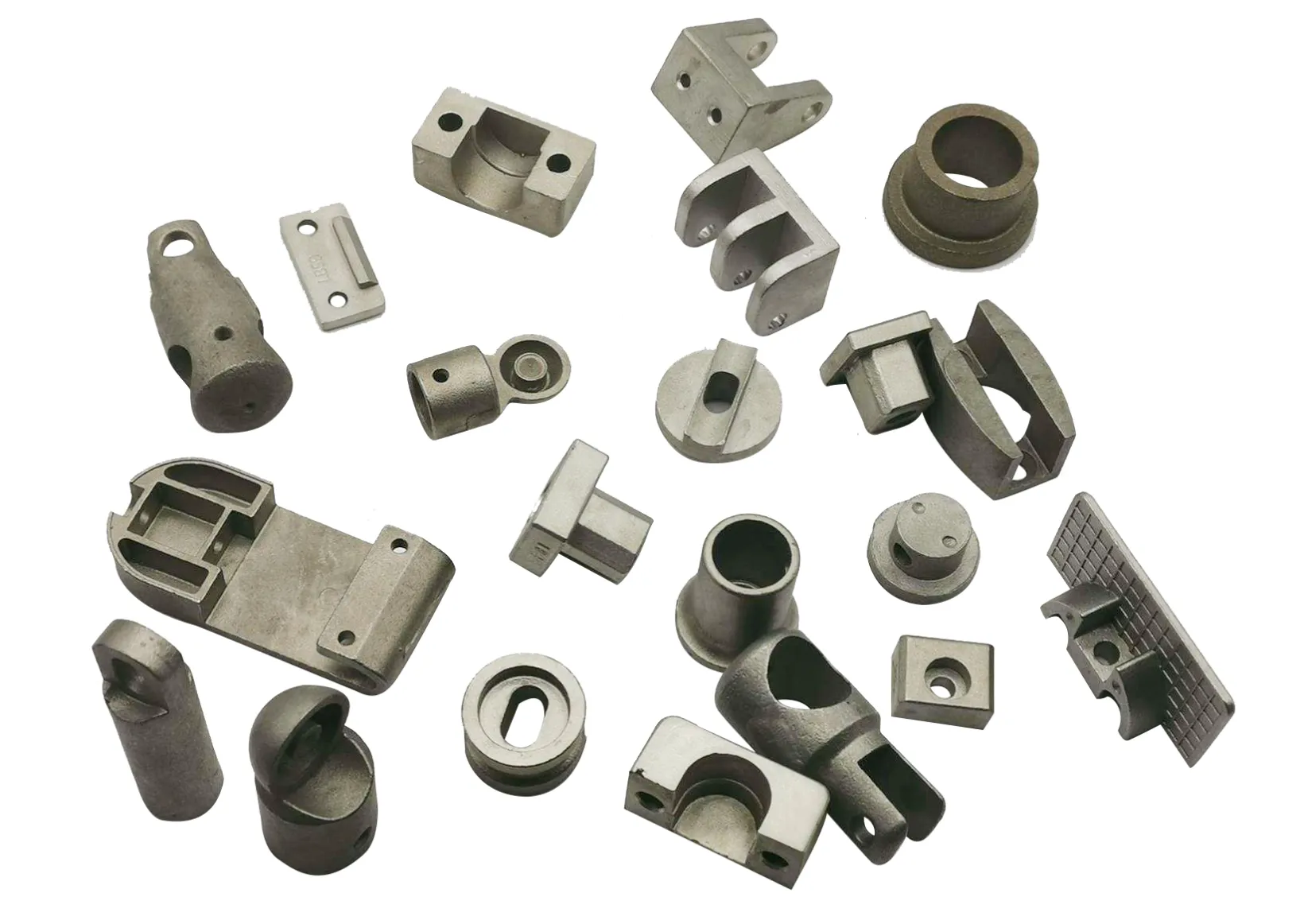

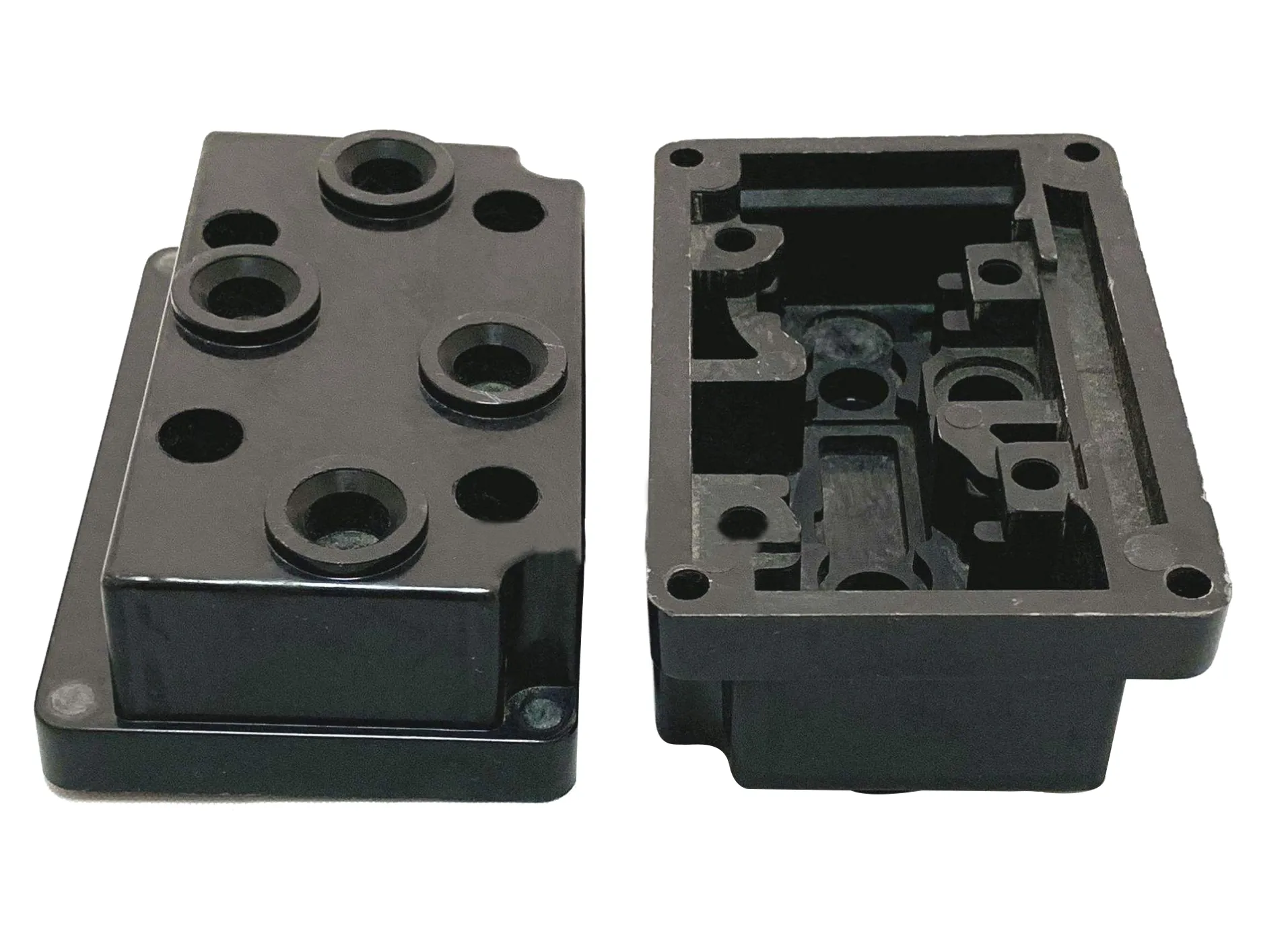

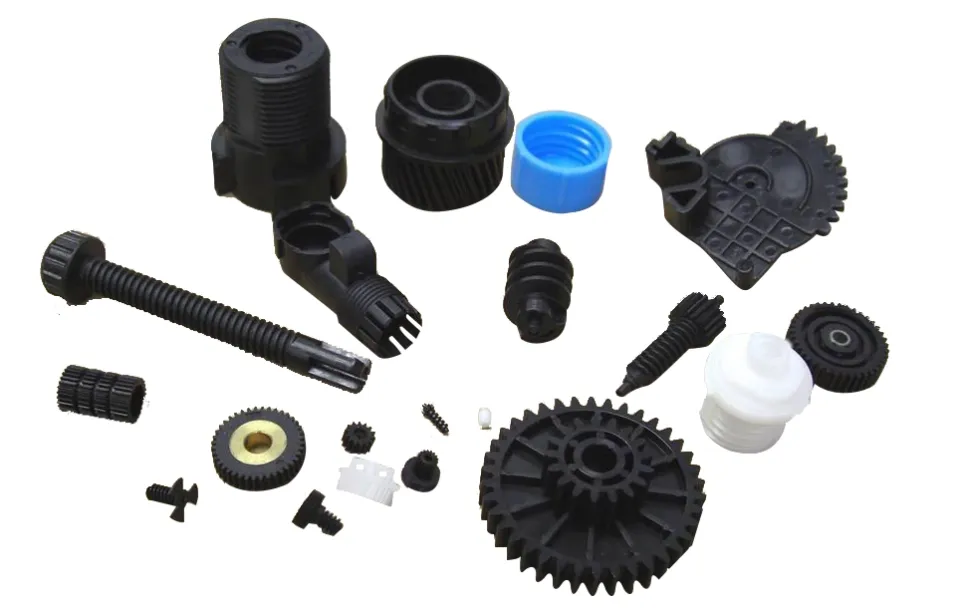

- Plastic injection molded parts
- Electronic components
- Automotive connectors
- Precision industrial parts
